1325-2536大幅面激光打标机
大幅面激光打标机
双轴同动
快速打标，快速雕刻，无缝拼接打标，快速打孔等。Quick marking, fast engraving, seamless splicing marking, fast punching, etc.
龙门式结构
打标时，龙门带着打标头移动，采用高精度直线模组和重型机床 超幅面打标拼缝肉眼不易分辨。
When marking, the gantry moves with the marking head, and high-precision linear modules and heavy-duty machine tools are used to mark and stitch on a large format, which is difficult to distinguish with the naked eye.

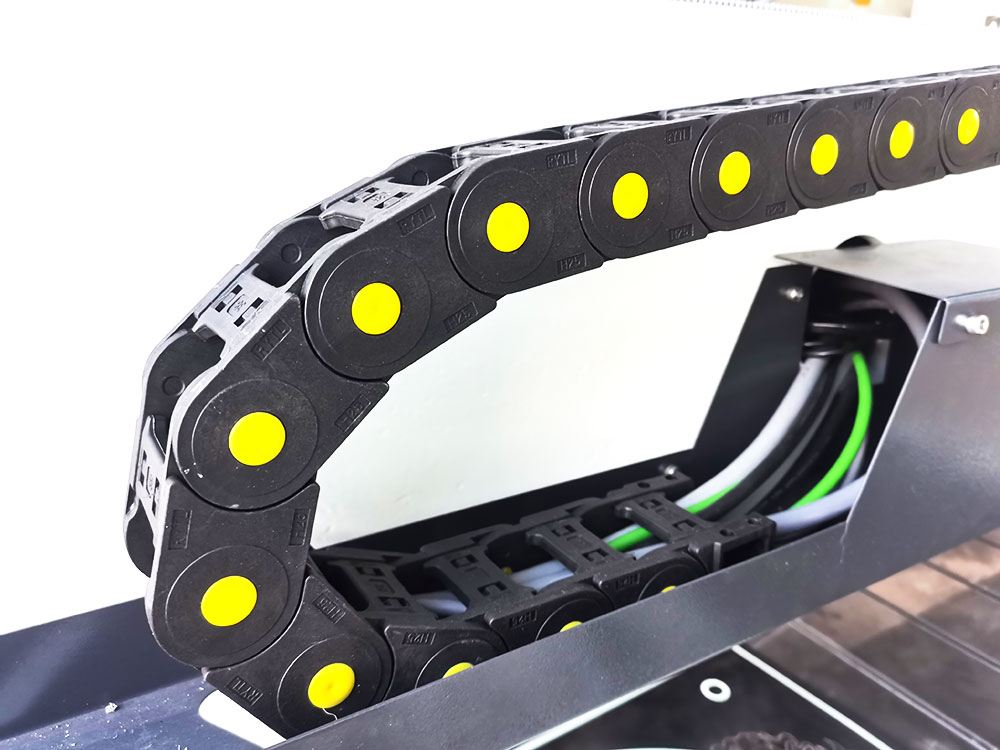

高精度运动模组
高精度支线导轨，平整度≤0.2毫米， 重复定位精度0.02毫米。
High precision branch line guide rail, flatness ≤ 0.2mm, repeated positioning accuracy 0.02mm.

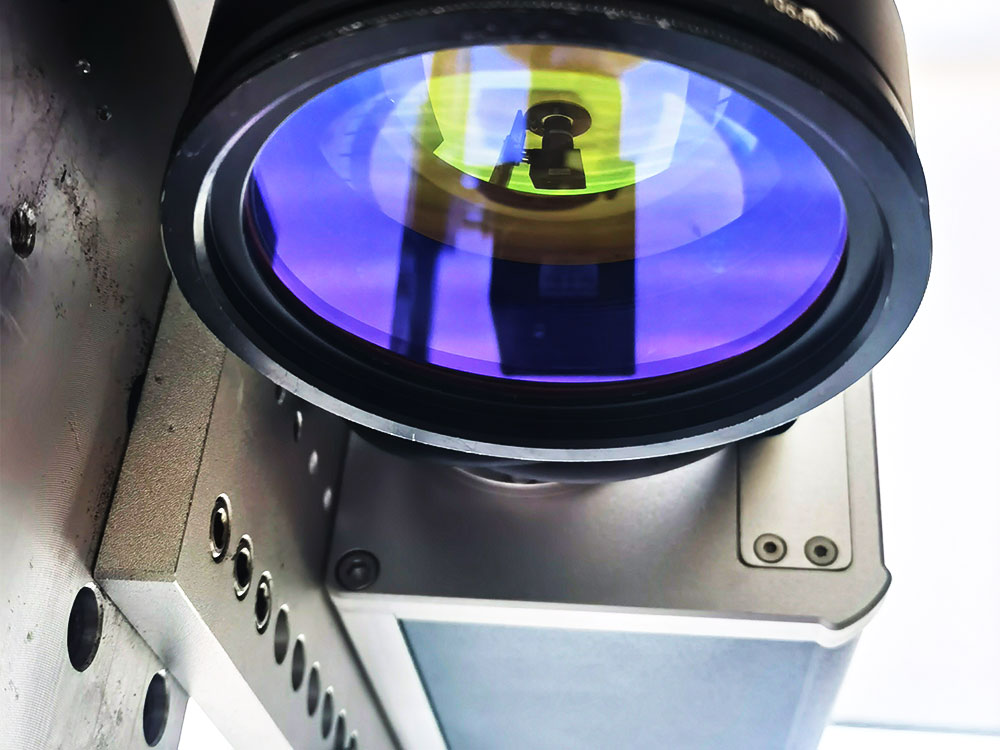

定制激光器
工业级定制激光器可实现金属材质打白、打黑、打深、 镜面剥漆， 镜面剥漆及磨砂可一次性完成。
Industrial grade customized lasers can achieve white, black, deep, and mirror peeling of metal materials, Mirror peeling and sanding can be completed in one go.
产品参数
| 序号 | 名称 | 参数 |
| 1 | 设备型号 | CZ-F100-1325A/B/C |
| 2 | 激光功率 | 60W/100W/120W |
| 3 | 激光波长 | 1064±3nm |
| 4 | 光束质量 | M2≤1.2 |
| 5 | 打标范围 | 6060/1325/2536可选 |
| 6 | 雕刻深度 | ≤5mm(视材料而定) |
| 7 | 雕刻速度 | 600字符/秒 |
| 8 | 最小线宽 | 0.01mm |
| 9 | 最小字符高度 | 0.3mm |
| 10 | 重复精度 | ±0.1mm |
| 11 | 整机耗电功率 | ≤2000-5000W |
| 12 | 电力需求 | 220V/50-60Hz |
| 13 | 冷却方式 | 风冷 |
应用范围
智能镜、电梯门、不锈钢、大型标牌、木板、玻璃、塑料、亚克力等
样品展示
